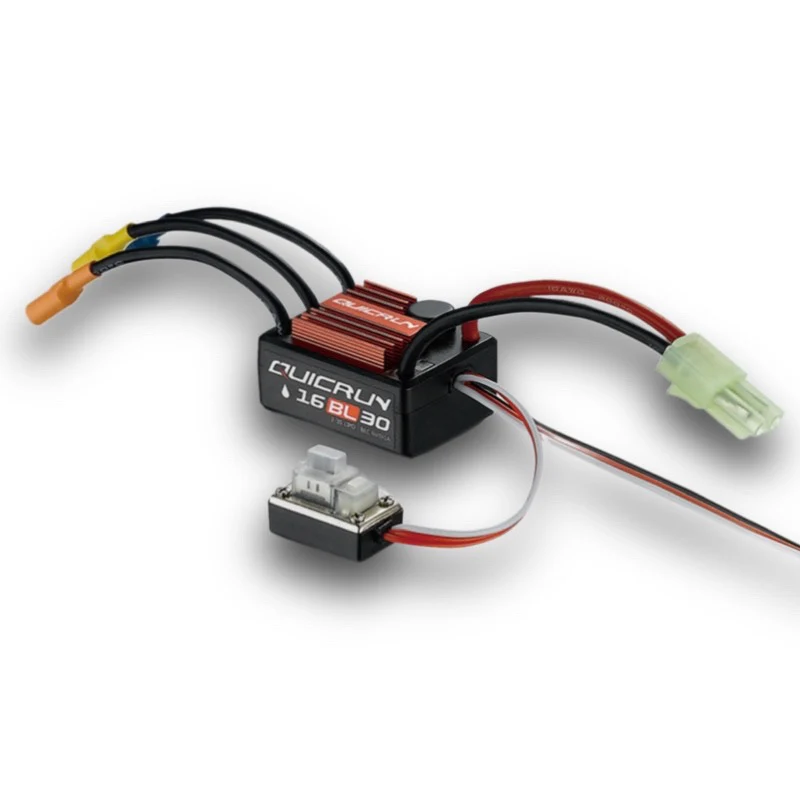

QUICRUN 16BL30 ESC (2S-3S)
MRSP $38.00
Waterproof and dustproof for all-weather.
- One-button (the “SET” button on the ESC) sets the ESC. All parameters easily reset to factory default settings.
- Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
- 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit different kinds of models, tires and tracks.
- Multiple protections: Low voltage cut-off protection / Over-heating protection / Throttle signal loss protection / Motor lock-up protection.
- 90 days limited warranty inspection service
Specification:
|
Model / SKU
|
QUICRUN-WP-16BL30 / 30105030001 |
|
Cont./Peak Current/ Resistance
|
30A/180A/0.002Ω |
| Motor Type Supported | Sensorless Brushless Motor |
| Car Applicable | 1:18 & 1:16 On-road/Off-road/Buggy/Monster |
| Motor Limit |
For 2S LiPo or 6 cell NiMH: 1. On-road: 2435-size or smaller motor with the KV<8000 2. Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<5000 For 3S LiPo or 9 cell NiMH: 1. On-road: 2435-size or smaller motor with the KV<5500 2. Off-road/Buggy/Monster: 2435-size or smaller motor with the KV<3500 |
| Battery |
4-9 Cell NiMH
2-3S LiPo |
| BEC Output | 6V/1A (Linear Mode) |
| Bullet Connector | 3mm |
| Size/ Weight | 36(L)*28(W)*16(H) / 38g |
| External Program Port | Not Available |
| Working voltage of Fan | No cooling fan |
Parameter List of QUICRUN 16 (WP-16BL30)
*letters in blue in the form indicate the factory default settings
| Programmable Items | Option 1 |
Option 2 |
Option 3 |
Option 4 |
Option 5 |
Option 6 |
Option 7 | Option 8 | Option 9 |
| 1. Running Mode Note 1 |
Fwd/Br | Fwd/Rev/Br | Fwd/Rev | ||||||
| 2. Drag Brake Force | 0% | 5% | 10% | 20% | 40% | 60% | 80% | 100% | |
| 3. Low Voltage Cutoff | Disable | 2.6V /Cell |
2.8V /Cell |
3.0V /Cell |
3.2V /Cell |
3.4V /Cell |
|||
| 4. Start Mode (Punch) | Level 1 | Level 2 | Level 3 | Level 4 | Level 5 | Level 6 | Level 7 | Level 8 | Level 9 |
| 5. Max. Brake Force | 25% | 50% | 75% | 100% | Disable | ||||
| 6. Max. Reverse Force | 25% | 50% | 75% | 100% | |||||
| 7. Initial Brake Force | =Drag brake force | 0% | 20% | 40% | |||||
| 8. Throttle Range | 6% (Narrow) |
9% (Normal) |
12% (Wide) |
||||||
| 9. Timing | 0 deg |
3.75 deg |
7.5 deg |
11.25 deg |
15.0 deg |
18.75 deg | 22.5 deg | 26.25 deg |
Note 1: Fwd=Forward, Rev=Reverse, Brk=Brake
Manufacture Limited Warranty Available through the HW Authorized Dealer Network in North America
- Combo available: Quicrun 16BL30+QR2435 motor
- Paired with QuicRun 2435 SL Brushless Motor
Manual Download
