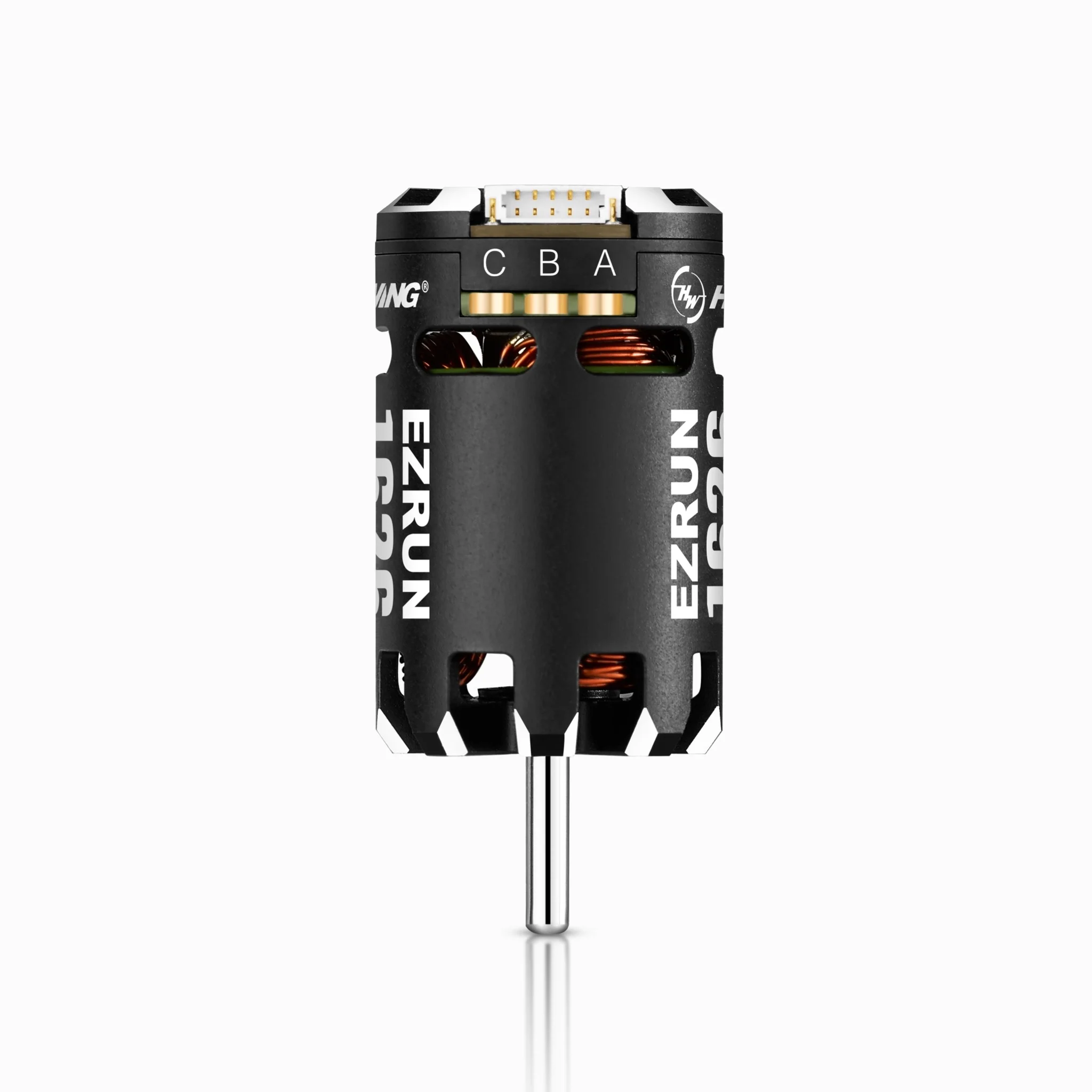

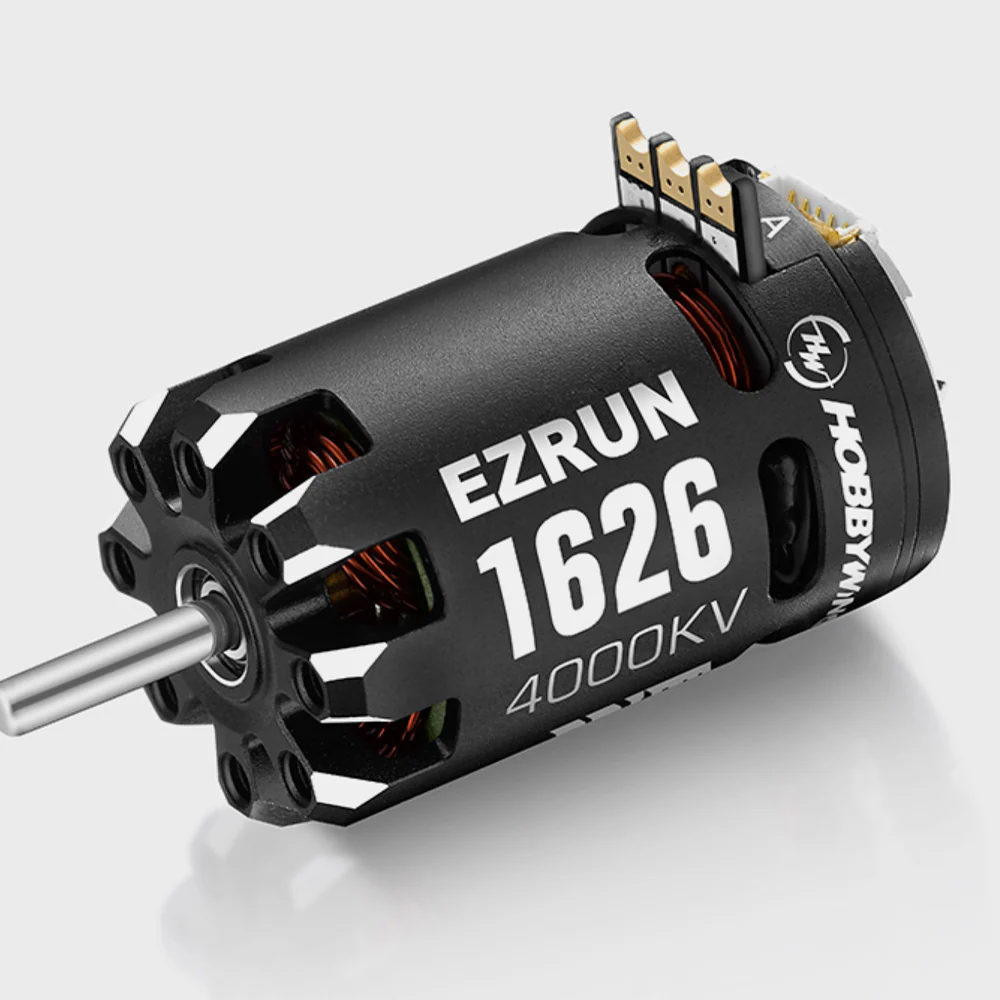

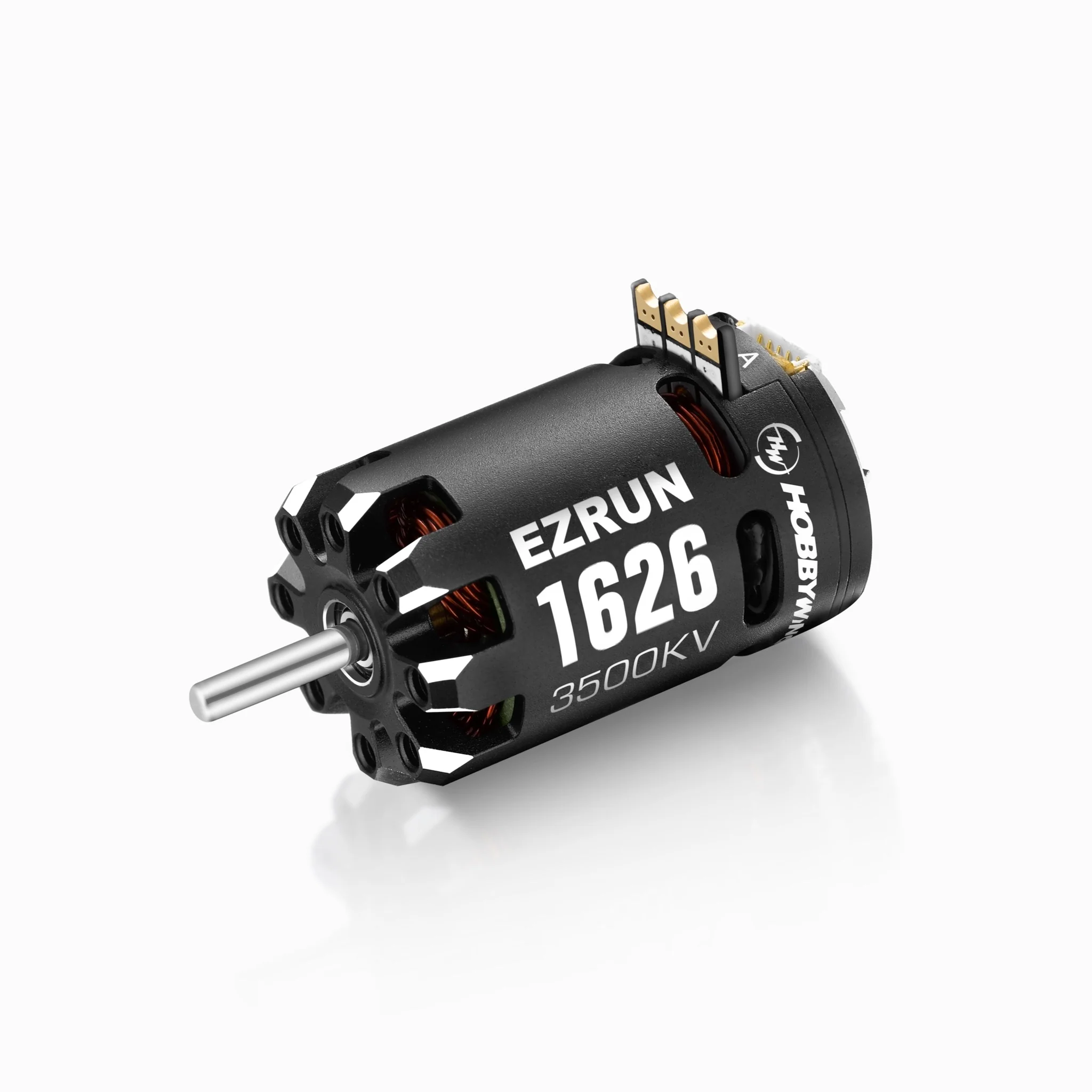

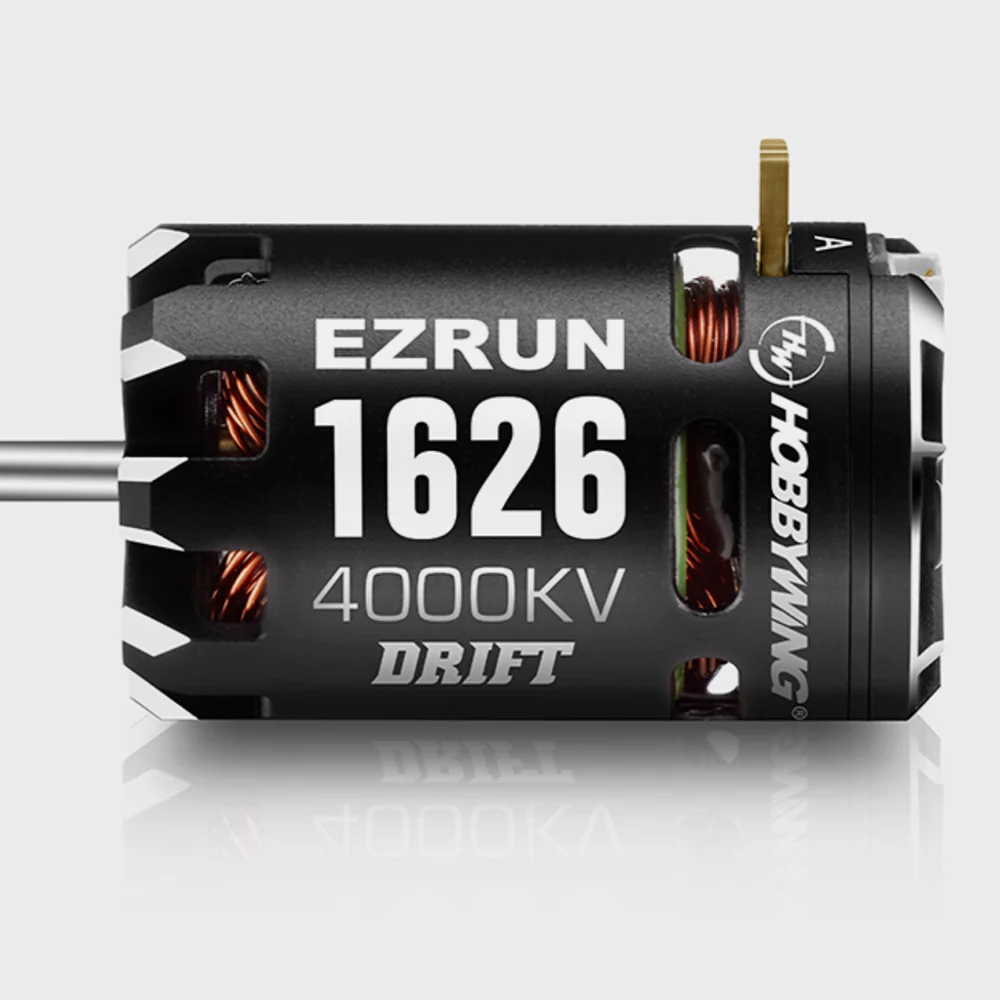

Ezrun 1626 Sensored Motor



MSRP $71.00

Designed for high-power 1/28th scale builders

• Improved top speed / Precision response / High efficiency with the cool operation
• When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
• Zero cogging, consistent torque and excellent low-speed response give an amazing feel and driveability
• Modular detachable structure, convenient for daily cleaning and maintenance.

Specification

Model	1626-3500KV	1626-4000KV Drift	1626-5000KV	1626-6500KV
PN	30402653	30402150	30402654	30402655
Pole	2	2	2	2
KV	3500KV	4000KV	5000KV	6500KV
No-load Current(A)	0.4A	0.4A	0.5A	0.6A
Input Voltage	2S	2S	2S	2S
Diameter/ Length(mm)	16	16	16	16
Shaft Diameter/ Length (mm)	26	26	26	26
Applications	1/28th Mini	1/28th Mini	1/28th Mini	1/28th Mini
Weight	18g	18g	18g	18g

Manual Download

 User's Manual
