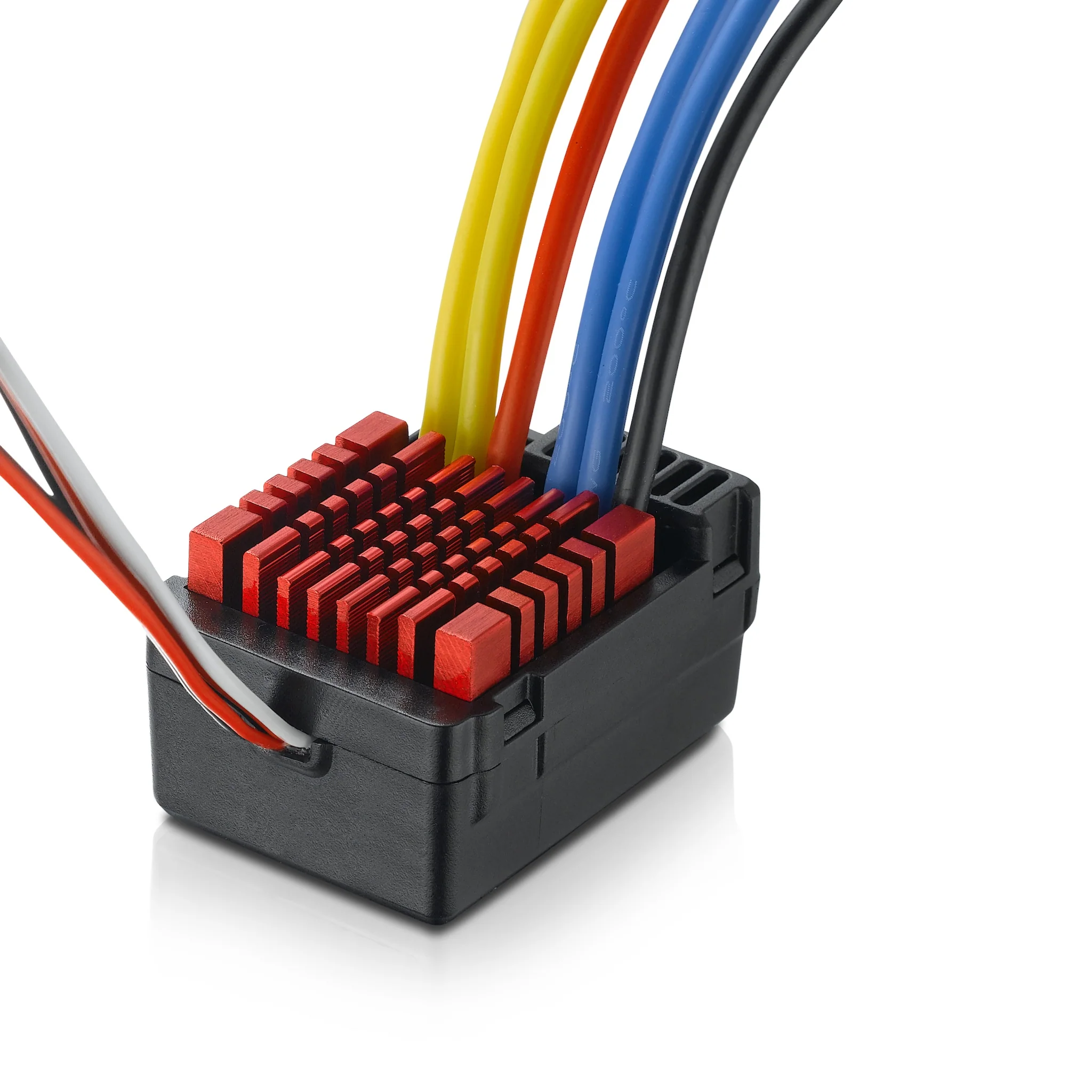

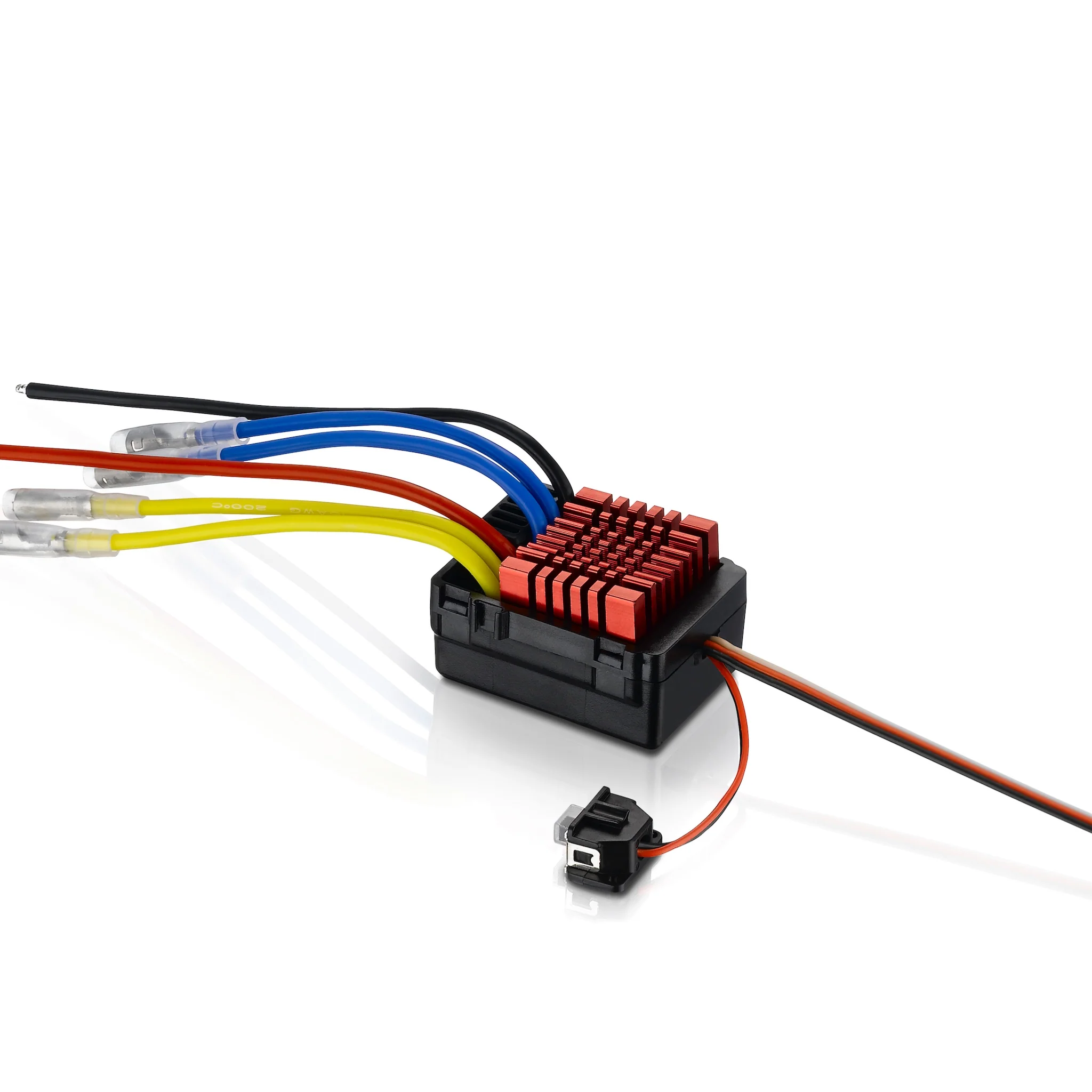

QUICRUN WP 880 Dual Brushed ESC (2-4S)
MAP $34.99 | MSRP $49.00Ā
QR880 DUAL Brushed ESC: Suitable for 1:8 / 1:10 All purpose
Water-proof and dust-proof for all weather races.
Please make sure to uninstall the cooling fan before using this ESC in water.Clean and dry soon after use to avoid rusting the connectors.
- Fully waterproof design for all conditions. (Note: Please clean and dry it after use for avoiding rusty connectors).
- HOBBYWING patented copper heat-conductive plates attached to the MOSFET board allows the internal heat to be quickly transferred to the aluminum heat sink for great heat dissipation.
- Built-in switch-mode BEC with cont. current of 4A.
- Tunable drag brake and dragĀ brake rate for different vehicles, tracks, and control feel.
- Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel.
- 9 levels of acceleration/ punch from soft to aggressive for different vehicles, tires and tracks.
- Proportional brake with 9 levels of initial brake force, maximum brake force, and drag brake force.Ā
- Multiple protections: low-voltage cutoff protection, thermal protection, and throttle signal loss protection.
- Separate programming portĀ to easily connect the LED program card (purchase separately) to the ESC.
- ESC programming via HOBBYWING LED Program CardĀ (purchase separately).Ā
|
Model / SKU
|
QUICRUN-880-DUAL-Brushed ESC /Ā 30120301 |
|
Cont./Peak Current
|
80A/400A |
| Motor Type Supported | Brushed Motor (540, 550, 775 Size Motor) |
| Applicable Car | Various 1/10th & 1/8th Vehicles |
| Motor Limit | Brushed Motor Limit with 2S LiPo /6S NiMH: ā„ 12T or RPM<[email protected] (540, 550 Size Motors) Brushed Motor Limit with 3S LiPo /9S NiMH: ā„ 18T or RPM<[email protected] (540, 550 Size Motors) Brushed Motor Limit with 4S LiPo /12S NiMH: ā„ 24T or RPM<[email protected] (540, 550 Size Motors) |
| LiPo /Ā NiMH Cells |
2-4S LiPo or 5-12S NiMH
|
| BEC Output | 6V@4A (Switch-Mode) |
| Connectors | Input End: No Connectors; Output End: 4.0mm Female Bullet Connectors |
| Size/ Weight | 45.9*34.7*26.5mm/ 75g |
| Programming Port | Separate Port |
| Waterproof | Waterproof |
| Fan | Not Included |
Note: WP-880-DUAL BRUSHED ESC has two outputs to drive 2 motors. When driving 2 motors simultaneously, the Turn of the motors needs to be increased.
- Ā LED Programming card (purchase separately)
Ā Ā
Ā
