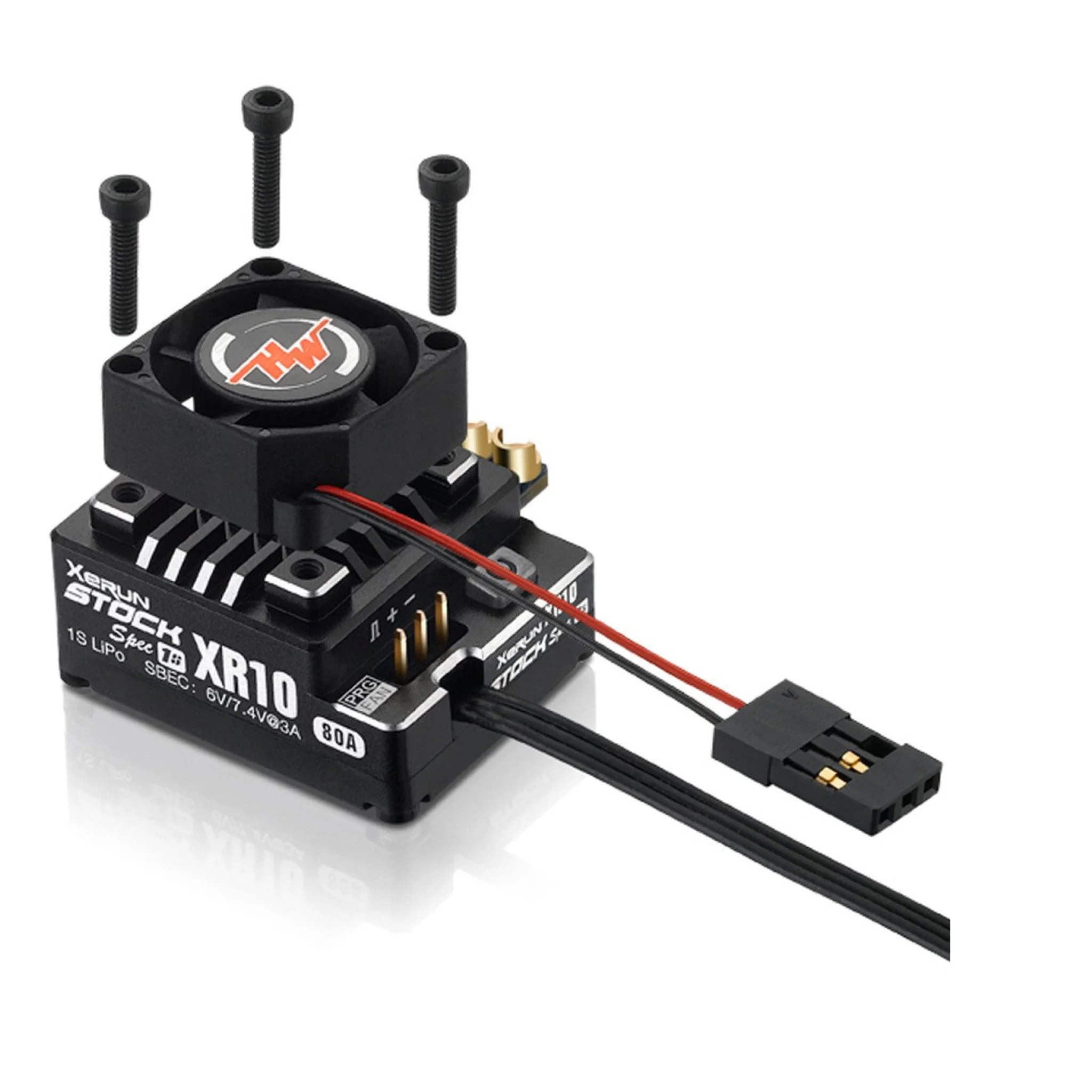

XR10 Stock Spec ESC (1S)

• Zero timing firmware for ROAR SPORTMAN races and other fair races.
• World's Smallest footprint & Lightweight ESC ever.  "23.5g"
• Programming/Upgrading/ Data Reading Wirelessly: Integrated Data logger can record the maximum temperature of ESC and motor as well as the maximum RPM.
• Built-in boost BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V for usage with high voltage servos.
• Separate PRG/FAN port is able to power an external fan for maximize cooling performance or connect a LCD program box or WiFi module to the ESC.
• With HOBBYWING OTA programmer, users are able to program parameters, upgrade firmware and check relevant data during the event using either the iphone or Android devices.
• New brakes and throttle functions: 100 levels of brag brake, 50 levels of initial brake force, 9 levels of maximum brake force, 20 levels of brake rate, and 30 levels of throttle rate. • Adjustable brake mode, PWM and brake frequencies and for different competitions and control feel.
• Adjustable Turbo Timing & Boost Timing for different applications.
• Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail safe (throttle signal loss protection).
• Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real time.
