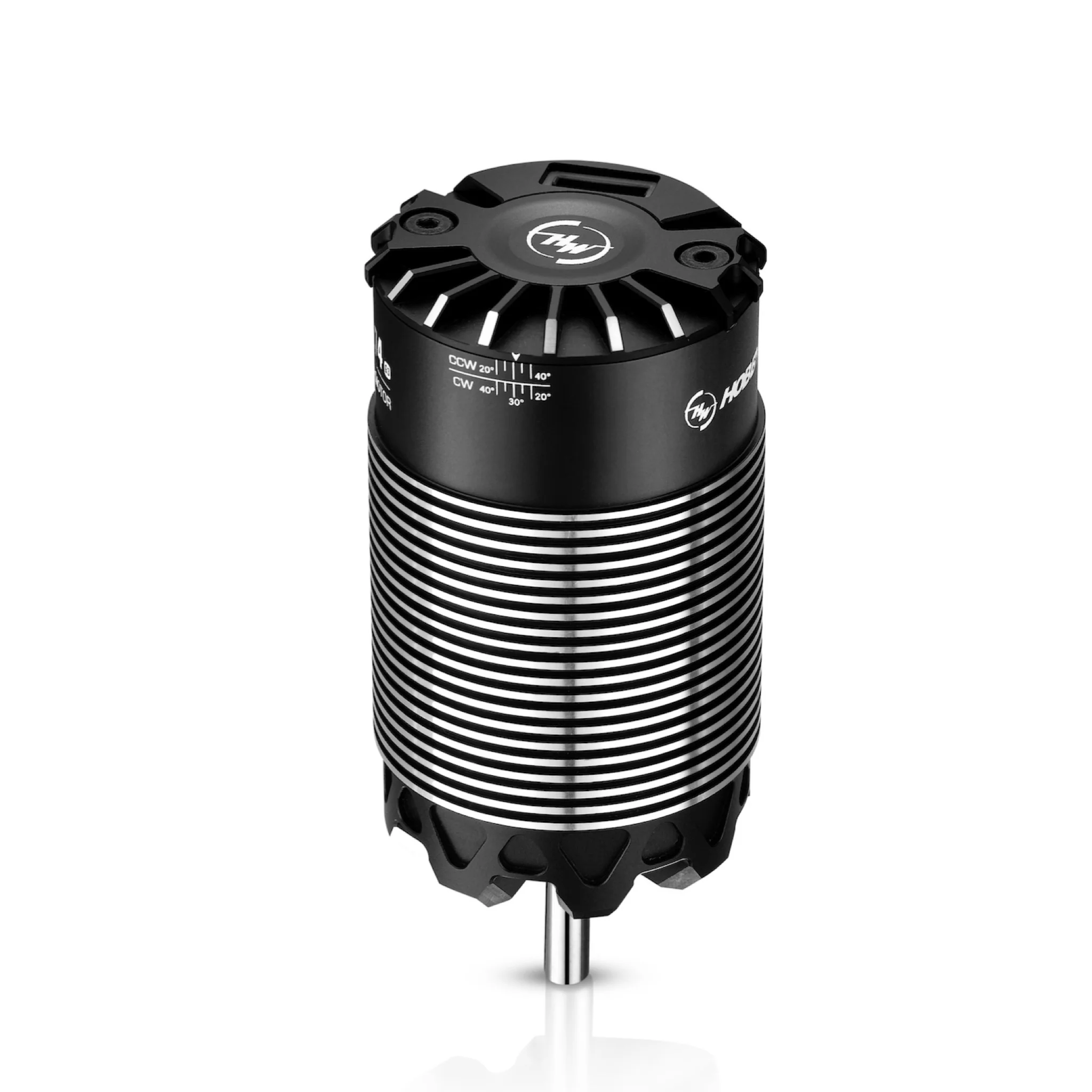

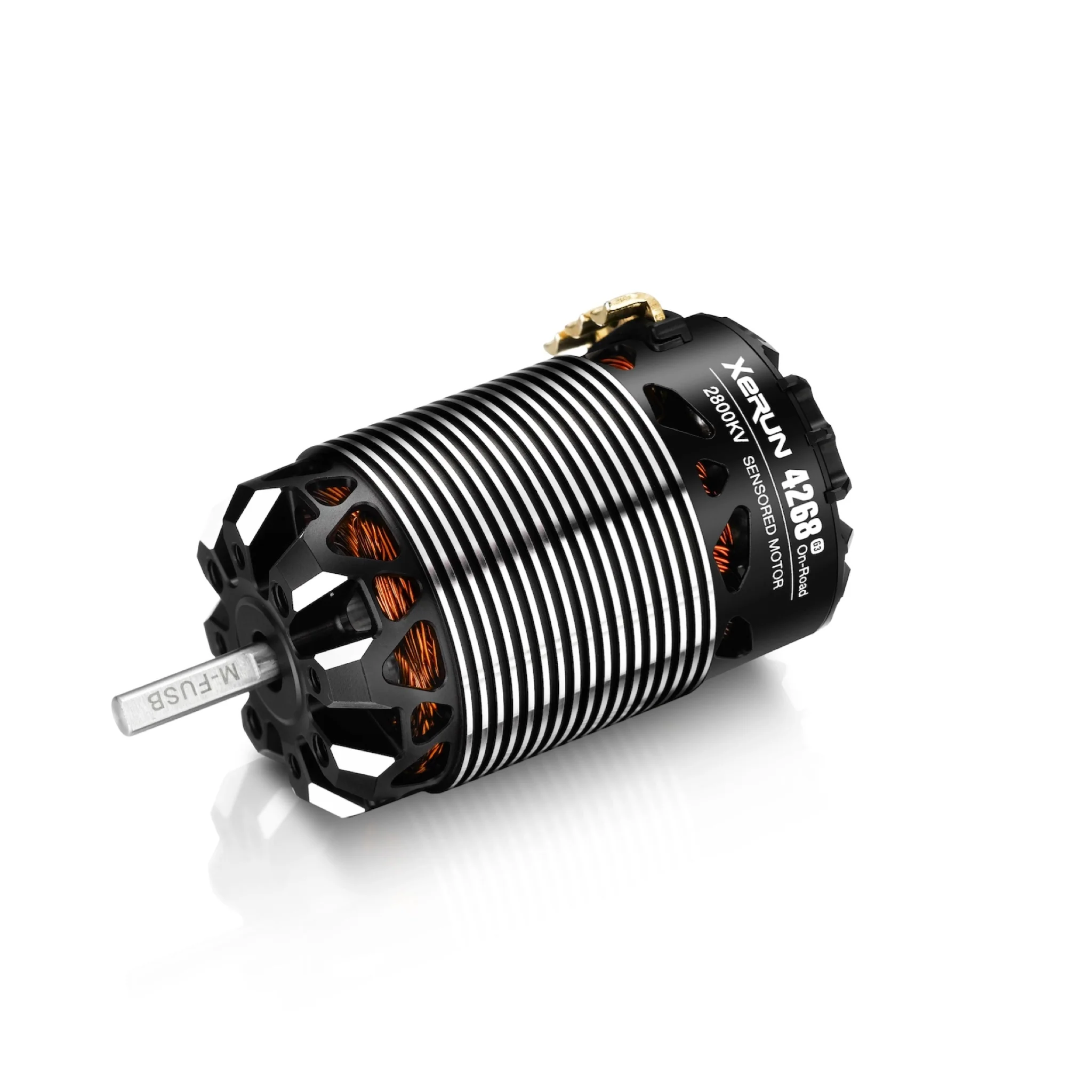

XERUN 4268 SD G3 Motor

MAP $149.99 | MSRP $212.00

Xerun 4268 SD G3 Motor

ROAR Approved

  • Suitable for 1/8th SCT, Buggy and Touring Car
  • Turbo Timing Technology
  • Full Sensored mode (when paired with XR8 Plus G2S ESC)
  • Adjustable Timing (Bi-Directional) 20-40 degrees
  • Advanced Hall Sensor System
  • 4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
  • Guarantees users the effective heat dissipation and dust prevention
  • The use of double insulated windings (240°C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340°C) guarantees users the outstanding performance and super durability.
  • Learn more...
Specification
Xerun 4268SD
p/n 30401906 30401907 30401908 30401910  30401909
kv 1900kv 2200kv 2000kv 2400kv 2800kv
pole 4 4 4 4 4
Lipo 2S-6S 2S-6S 2S-6S 2S-4S 2S-4S
R. (Ω) 0.0075 0.0069 0.0069 0.0059 0.0035
no load current (A) 4A
4.1A 4.2A 4.3A 6.1A
Size. O.Dia / Length (mm) 42/68 42/68 42/68 42/68mm 42/68
Weight (g) 315 285 285
276g 300
Vehicles

1/8 OffRoad

1/8 OffRoad 1/8 OnRoad 1/8 OnRoad 1/8 OnRoad

Bearing Specs
 Front Bearing Diameter Rear Bearing Diameter
Outer=16mm, Inner=5mm, Height =5mm Outer=11mm Inner=5mm Height=5mm
Best match with
Also recommend to check out

Download


<< learn more...

Select Power
From $39.00

Original: $129.99

-70%
XERUN 4268 SD G3 Motor

$129.99

$39.00

Product Information

Shipping & Returns

Description

MAP $149.99 | MSRP $212.00

Xerun 4268 SD G3 Motor

ROAR Approved

  • Suitable for 1/8th SCT, Buggy and Touring Car
  • Turbo Timing Technology
  • Full Sensored mode (when paired with XR8 Plus G2S ESC)
  • Adjustable Timing (Bi-Directional) 20-40 degrees
  • Advanced Hall Sensor System
  • 4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
  • Guarantees users the effective heat dissipation and dust prevention
  • The use of double insulated windings (240°C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340°C) guarantees users the outstanding performance and super durability.
  • Learn more...
Specification
Xerun 4268SD
p/n 30401906 30401907 30401908 30401910  30401909
kv 1900kv 2200kv 2000kv 2400kv 2800kv
pole 4 4 4 4 4
Lipo 2S-6S 2S-6S 2S-6S 2S-4S 2S-4S
R. (Ω) 0.0075 0.0069 0.0069 0.0059 0.0035
no load current (A) 4A
4.1A 4.2A 4.3A 6.1A
Size. O.Dia / Length (mm) 42/68 42/68 42/68 42/68mm 42/68
Weight (g) 315 285 285
276g 300
Vehicles

1/8 OffRoad

1/8 OffRoad 1/8 OnRoad 1/8 OnRoad 1/8 OnRoad

Bearing Specs
 Front Bearing Diameter Rear Bearing Diameter
Outer=16mm, Inner=5mm, Height =5mm Outer=11mm Inner=5mm Height=5mm
Best match with
Also recommend to check out

Download
 User manual


<< learn more...
