XERUN AXE v1.1 FOC brushless motor (Certified)

Factory-certified Refurbished unit.
* AXE v1.1 motor works with the first generation of XeRun AXE v1.1 ESC only

• Certified, all new parts
• 90 days manufacture limited warranty
• No retail packaging

Features

• Word's First FOC brushless system for Rock Crawler.  Field-Oriented Control for Super Linearity & High Torque & Extreme Silence.
• "POLARITY PROTECTION".  Yes. it is not a typo.  No more "oops" moment. The chip-type magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs the pure and precise signals indicating the rotor position.
• The waterproof and dust-proof design (*IP67 standards) allows the AXE brushless power system to be used in all weather & track conditions without any issue of damage caused to the system from water or dust. Damage to the vehicle caused by water, mud, or conditions should be monitored closely when running in muddy, wet, or adverse conditions.
• Intelligent torque output & speed closed-loop control for easy control, and consistent motor RPM under all loads.
• The motor with 4 poles & 12 magnets, featuring Hobbywing’s “staggered pole” patent has zero cogging effect & torque ripple. It can work smoothly at low speeds. This greatly improves
• the maneuverability of rock crawlers at low speeds.

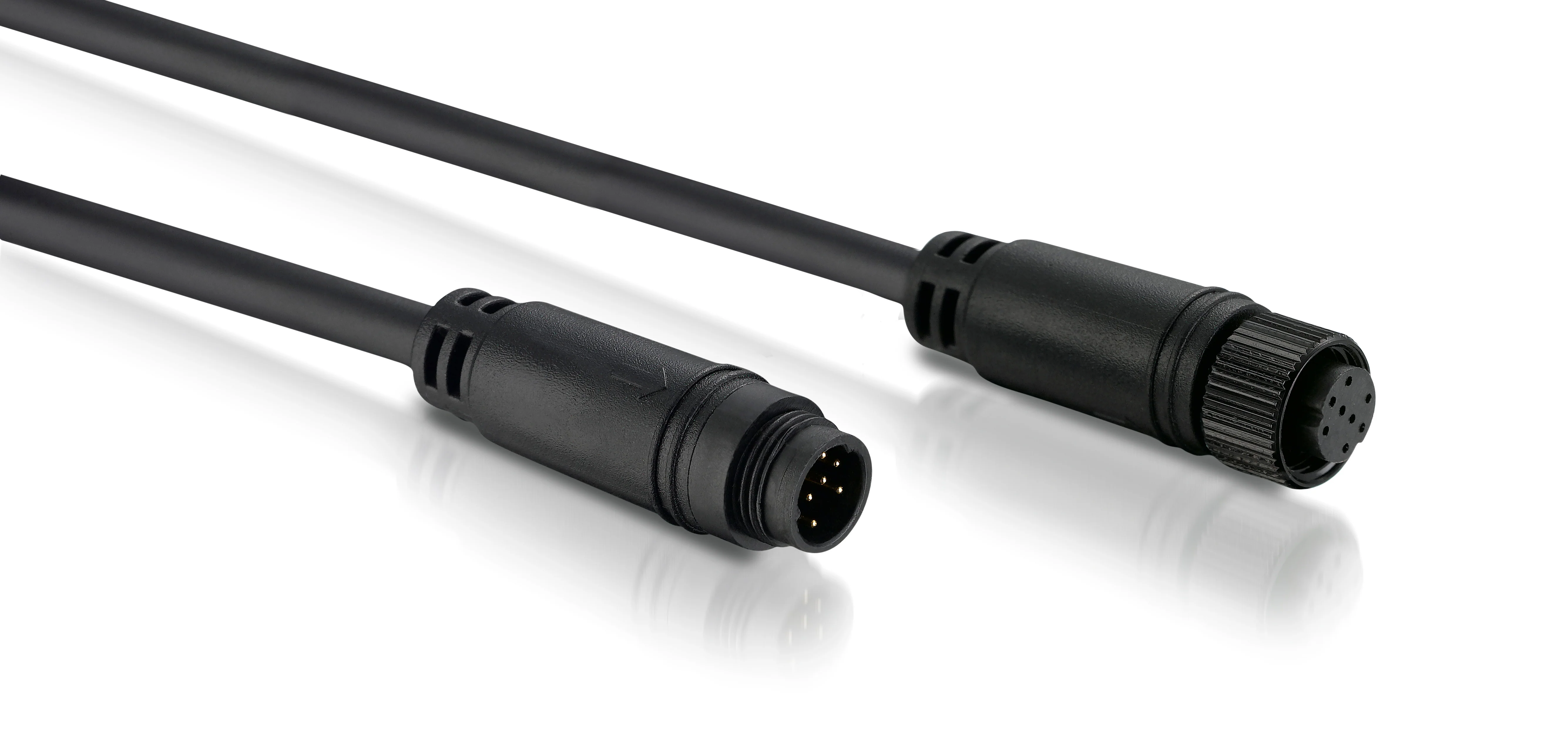

• The new sensor harness, which features the plug-and-screw design, has a silicone O ring inside. The new design & O ring not only provide a firm connection between motor and ESC but solve “waterproof” challenge for sensor ports.



Specifications

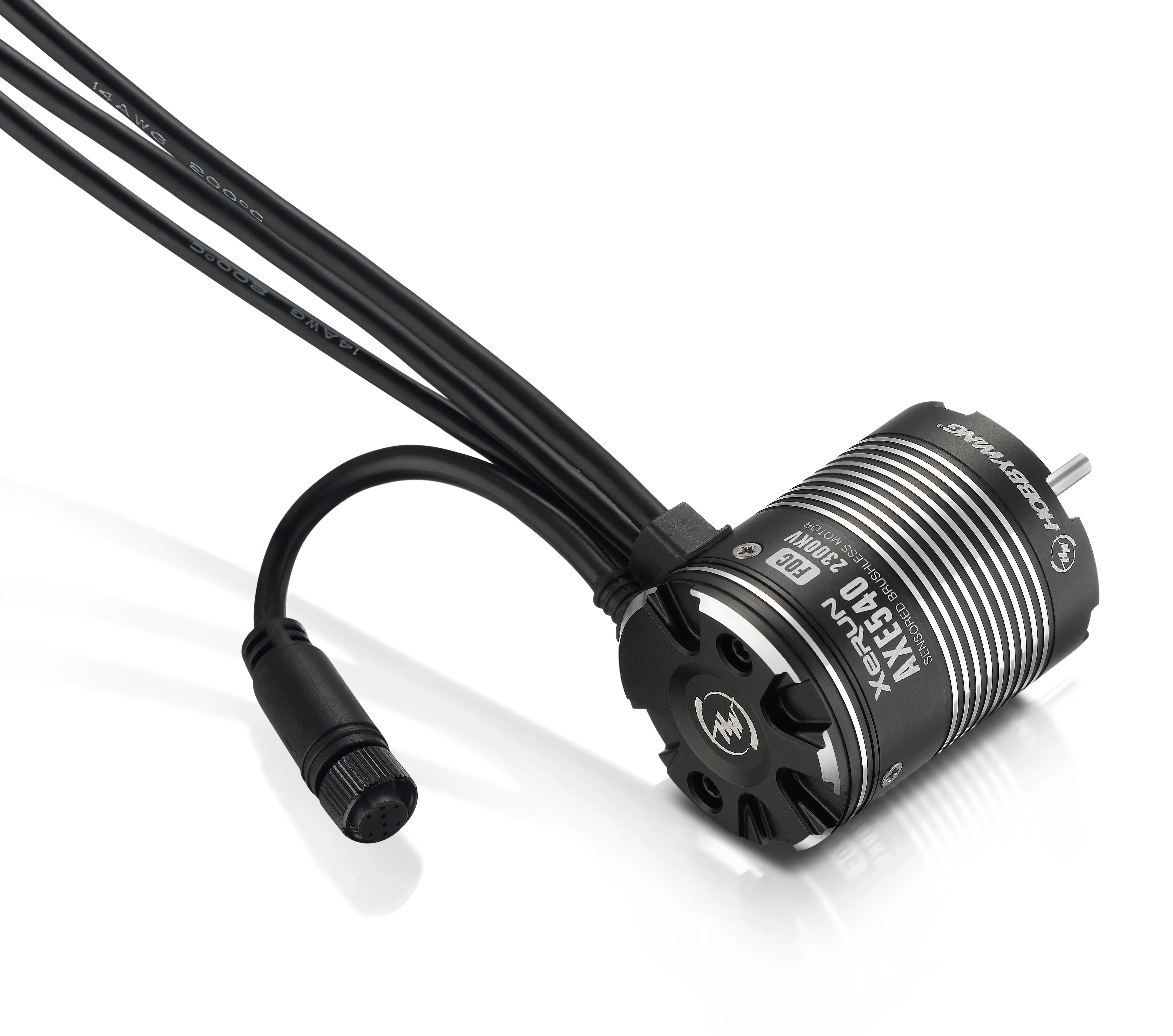

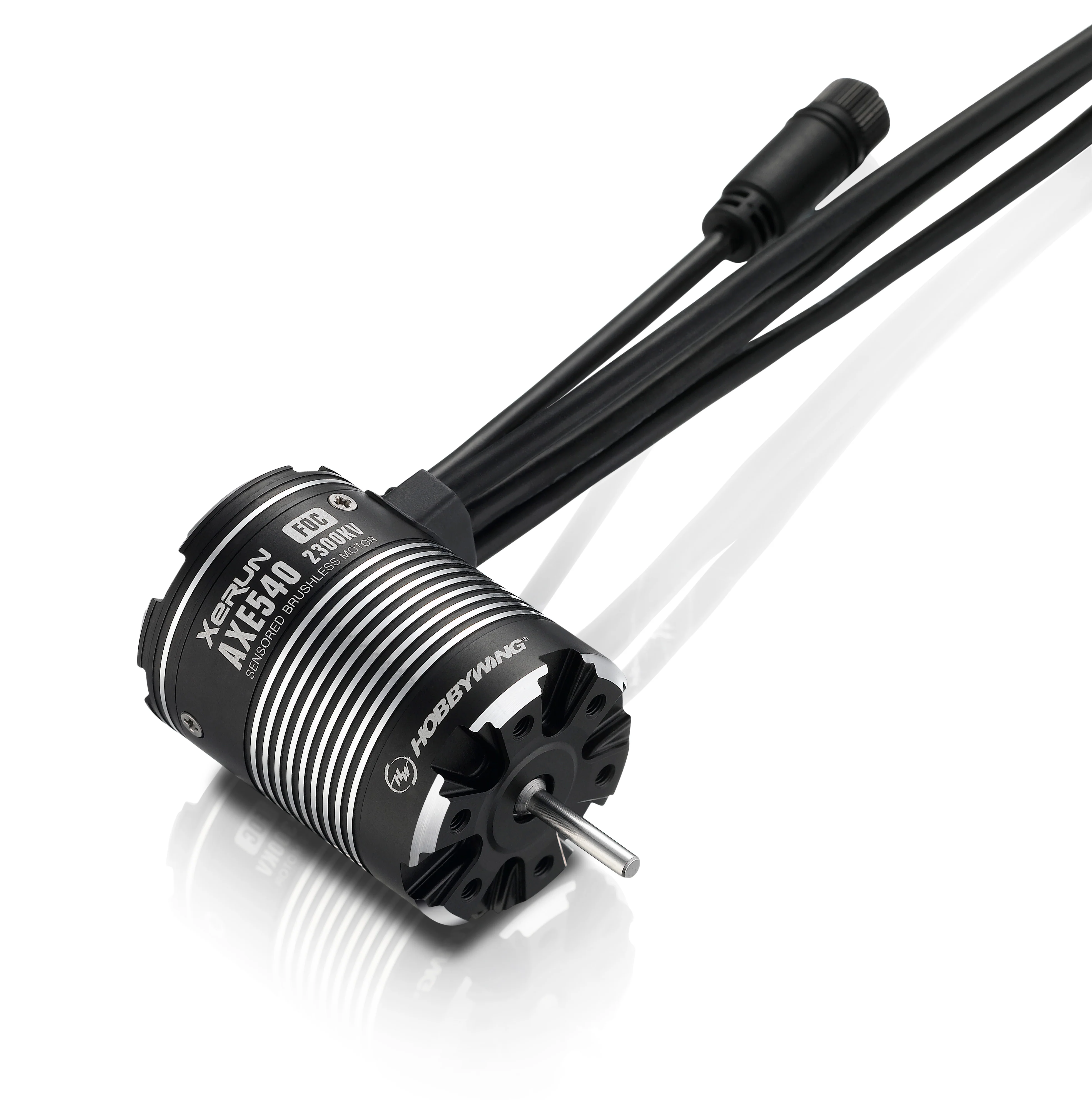

540 FOC Motor
KV	1200kv	1800kv	2300kv
p/n	30401250	30401251	30401252
LiPo	2-3S	2-3S	2-3S
No-load Current (A)	0.9	1.2	1.5
Weight (g)	175g	173g	173g

• 1/10 FOC brushless motor (Patented)
• Waterproof,
• Motor Diameter: 36.0(1.42in)
• Length (mm): 48.8mm(1.92in)
• Shaft Diameter: 3.175(0.125in)
• Pole: 4

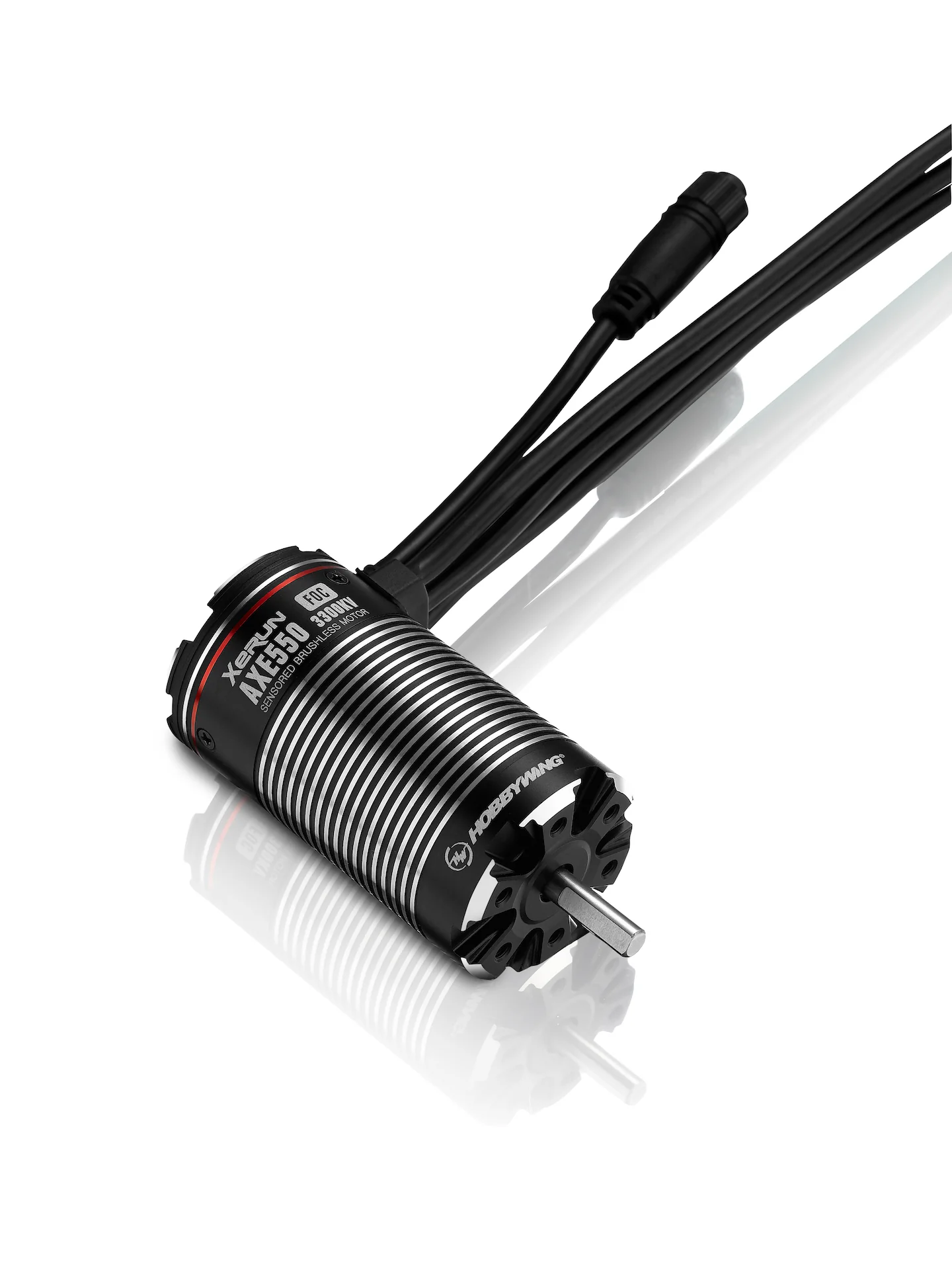

550 FOC Motor
KV	2700kv motor	3300kv Motor
LiPo	2-3S	2-3S
No-load Current (A)	2.7	3.8
Weight (g)	289g	284g

• 1/10-1/8th FOC brushless motor (Patented)
• Waterproof,
• Motor Diameter: 36.0(1.42in)
• Length (mm): 66.2 (2.61in)
• Shaft Diameter: 5(0.197in)
• Shaft Length: 16(0.63in)
• Pole: 4
