Trending | MAP $24.99 | MSRP $54.00

★★★★★

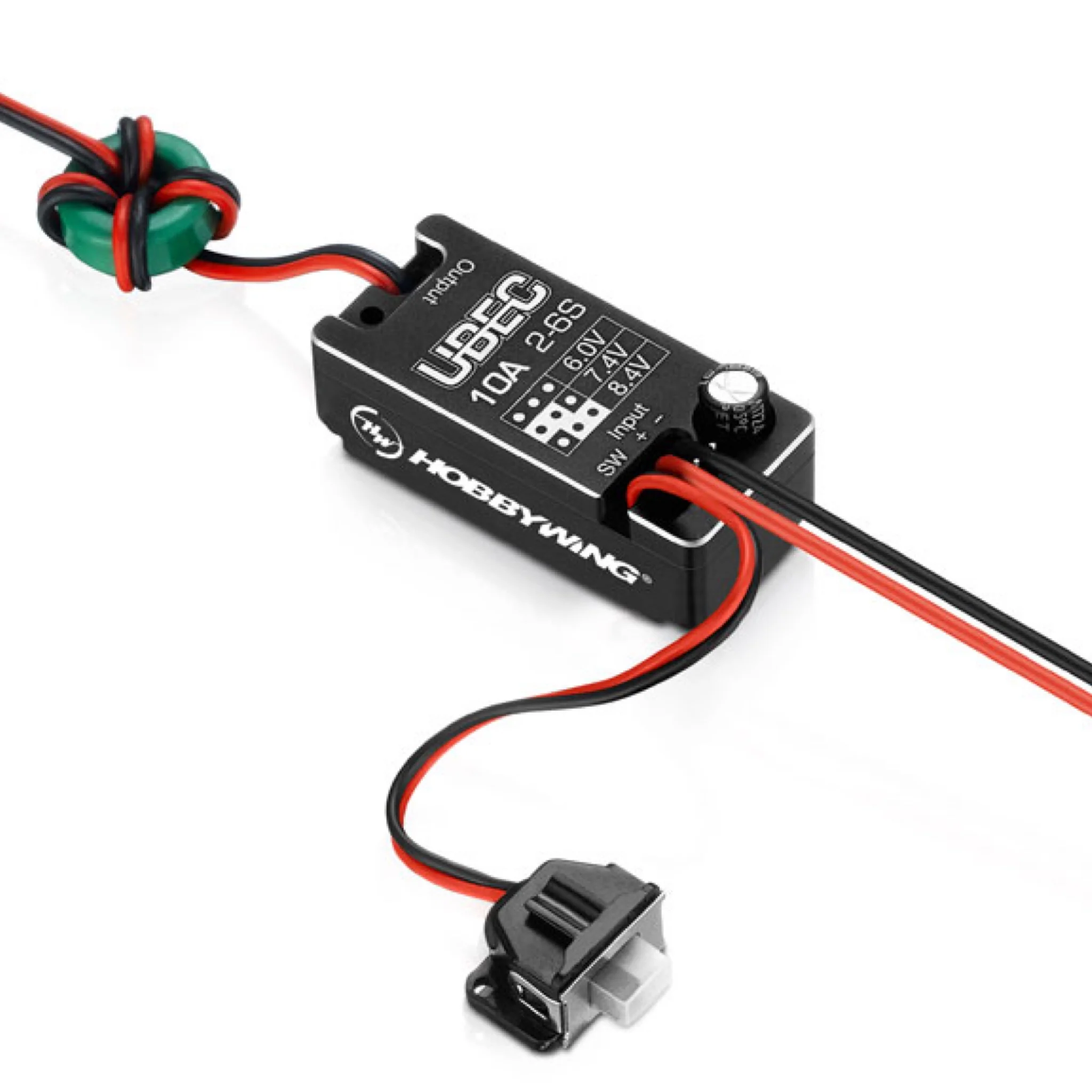

The UBEC uses an efficient DC-DC regulator chip with a conversion efficiency of more than 90%. The all-metal housing is designed to help dissipate heat and reduce electromagnetic interference. The UBEC output voltage is adjustable in three stages (6.0/7.4/8.4 V) with a continuous current of 10A and a maximum of 15A. The voltage specifications allow the use of a wide range of servos and electrical equipment such as lights, winches, wipers and etc. At the same time, the UBEC is equipped with overcurrent protection, output short-circuits protection, overheat protection, and IP67 waterproof dust design, and can be widely used on crawlers, trucks, and other electric models as well.

Specifications

Model：UBEC 10A-Car
Input voltage：2-6s lithium batteries
Output voltage：6.0 / 7.4 / 8.4 V (3 options adjustable)
Output current：Continuous 10A，Instantaneous 15A
Measurement：45*20*16.2mm
Weight ：34g（including wires）

It adopted the advanced DC-DC regulator chip with conversion efficiency exceeds 90%;
3 options for the output voltage, applicable for all kinds of receivers/gyros/servos, etc.
It owns BEC shoot-through protection, which prevents the input voltage from directly flowing to the output end and causing damages to receivers, servos, and other electronic devices;
It featured other protections like over-current protection, short-circuit protection (at the output end) and thermal protection make the use more safe and reliable;
It has one status LED, which lights up when the output voltage is within the normal range;
The external switch can turn on/off the UBEC easily;
Exquisite aluminum case is helpful for heat dissipation & EMI (Electromagnetic Interference) reduction.

MANUFACTURE LIMITED WARRANTY available through authorized dealers

Product purchased from Hong Kong retailers, eBay discount stores deem non-warranty in North America

Related products/references

Manual Download

Specifications

Related products/references

>> See all UBEC collection

>> See all Accessories

UBEC / BEC

UBEC 3A (2-6S Lipo Input)

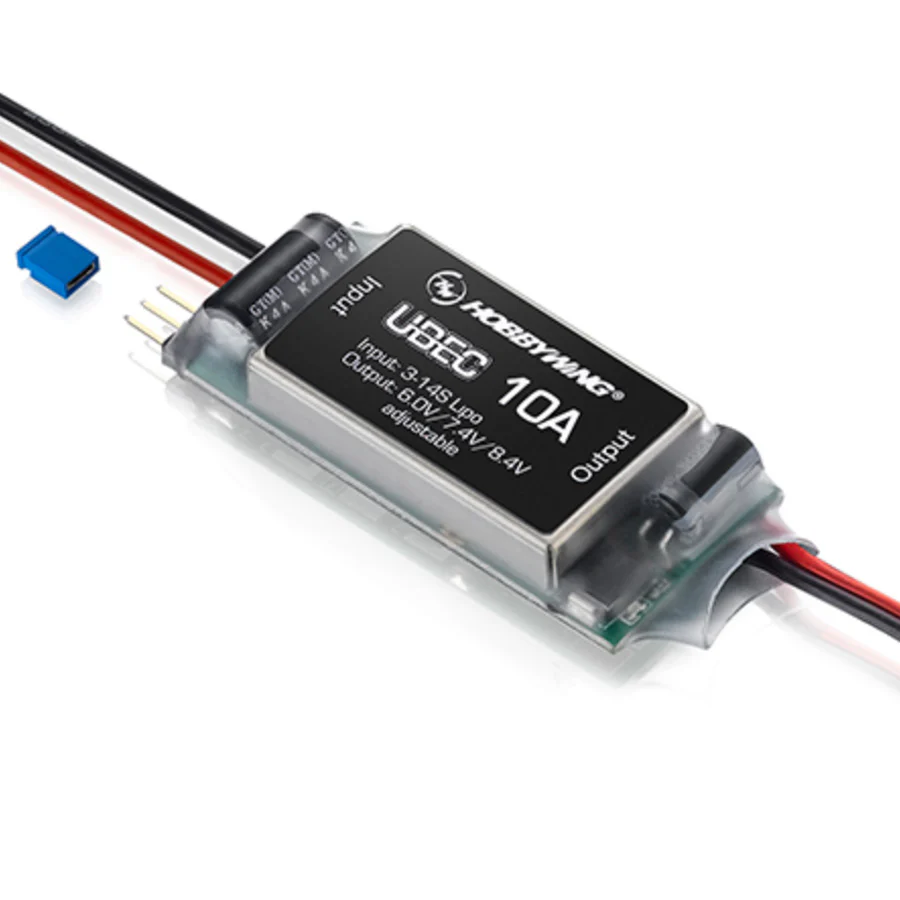

UBEC 10A HV (3S-14S)

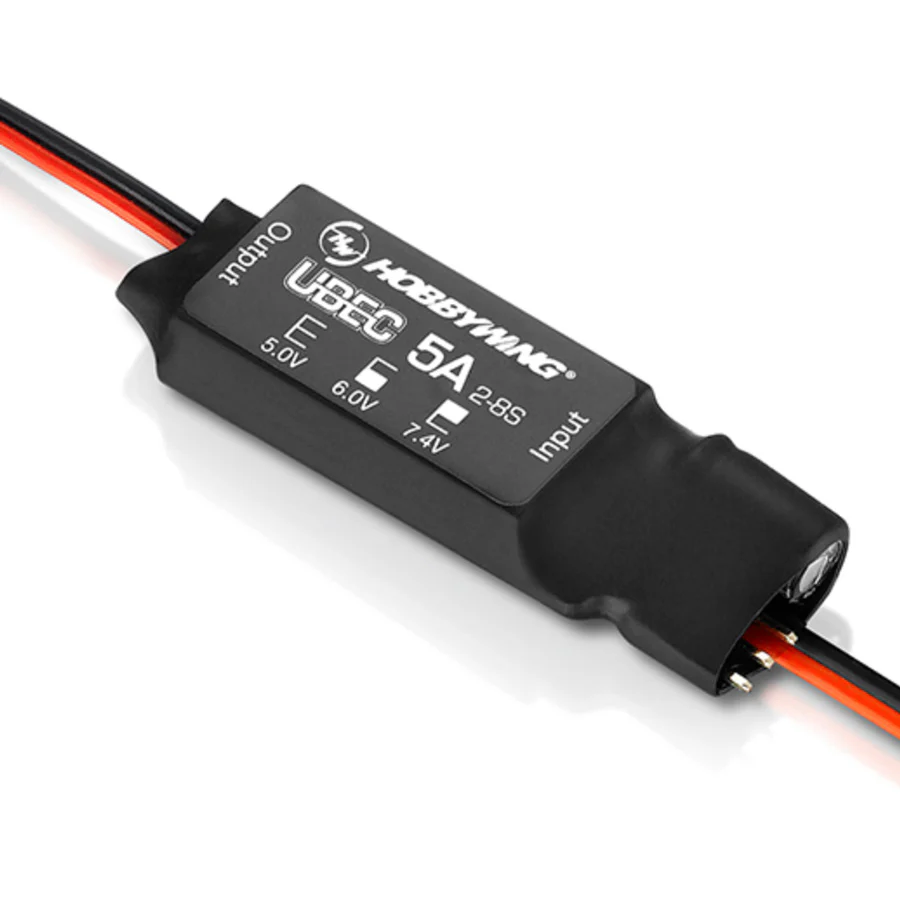

UBEC 5A AIR (2S-8S)

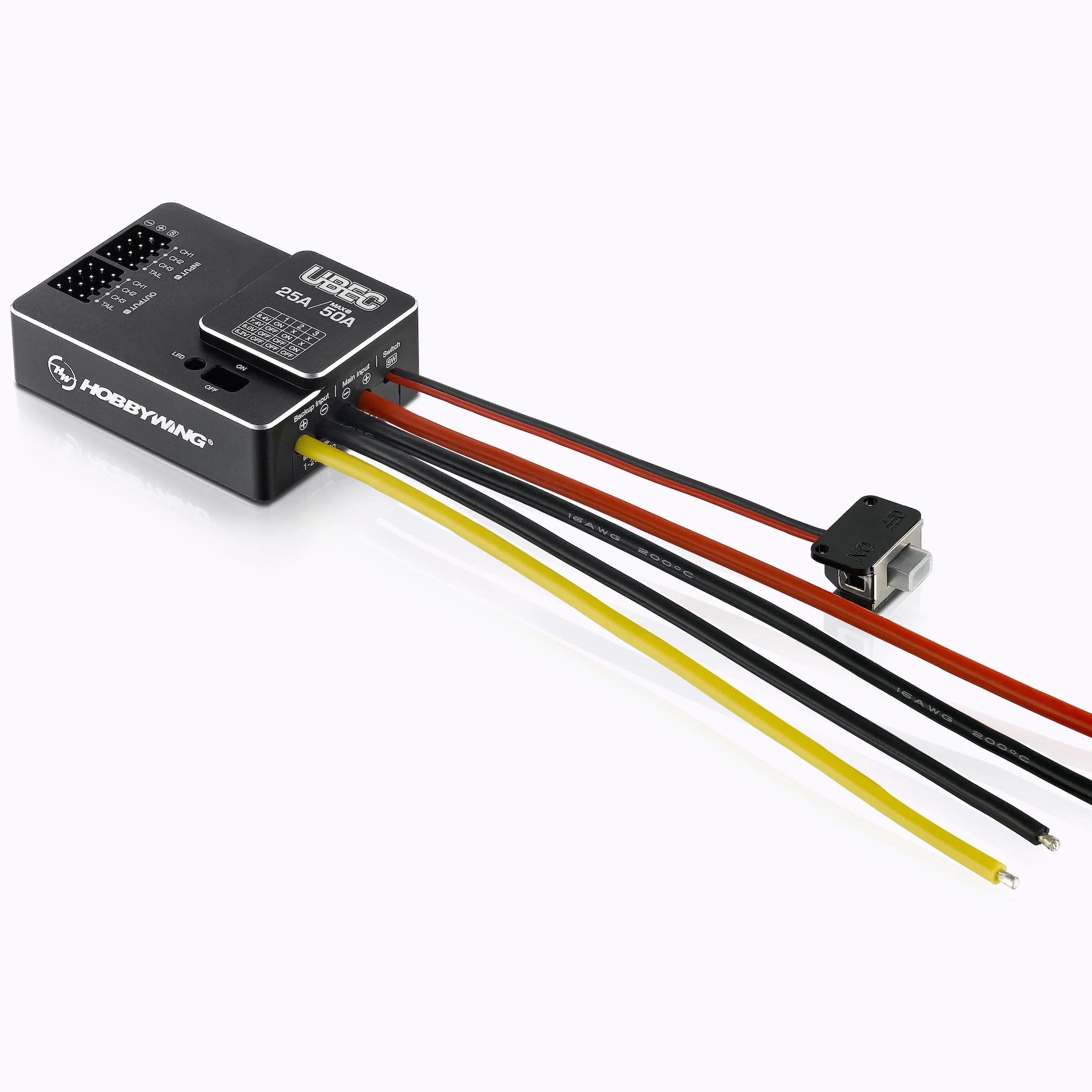

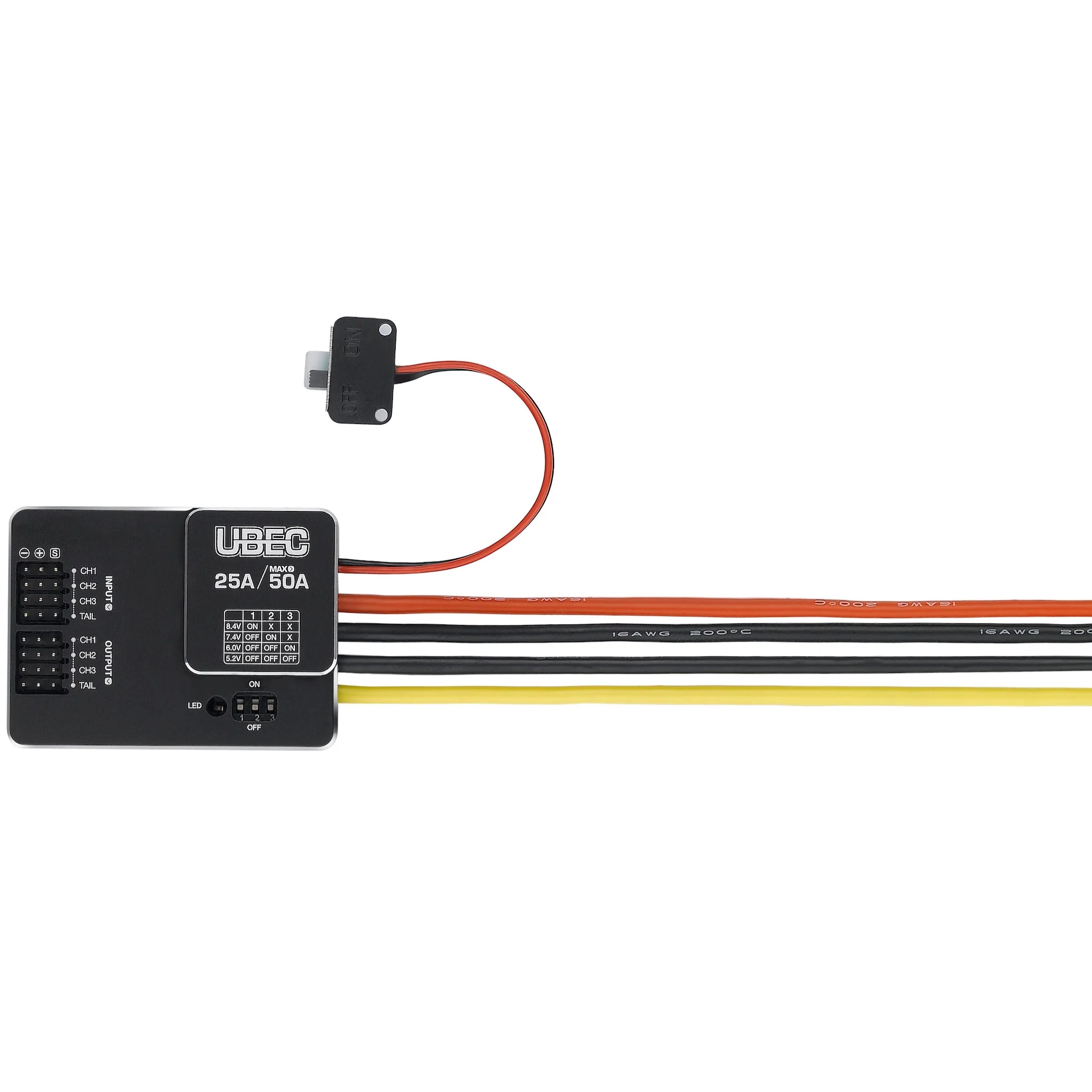

UBEC 25A HV
