This capacitor module (/cappack) is for “upgrading” your car ESC. With this cappack, the start-up acceleration of your vehicle will be greatly improved. Besides, the great ripple current endurance significantly reduces the generated interference due to the rapid ON/OFF of the ESC power tube.

Features

★Low impedance, low heat generation, great start-up acceleration. The comparison between HOBBYWING capacitor module and other established brand's capapack.

★With the great ripple current endurance, the interference generating from turning on/off of your ESC power tube is remarkably reduced.

★With the small size and light weight, it’s easy to install.

	HOBBYWING	Other brands
Internal Resistance	0.002Ω	0.012Ω
Ripple Current Endurance	24Amp	3.5Amp

Specifications

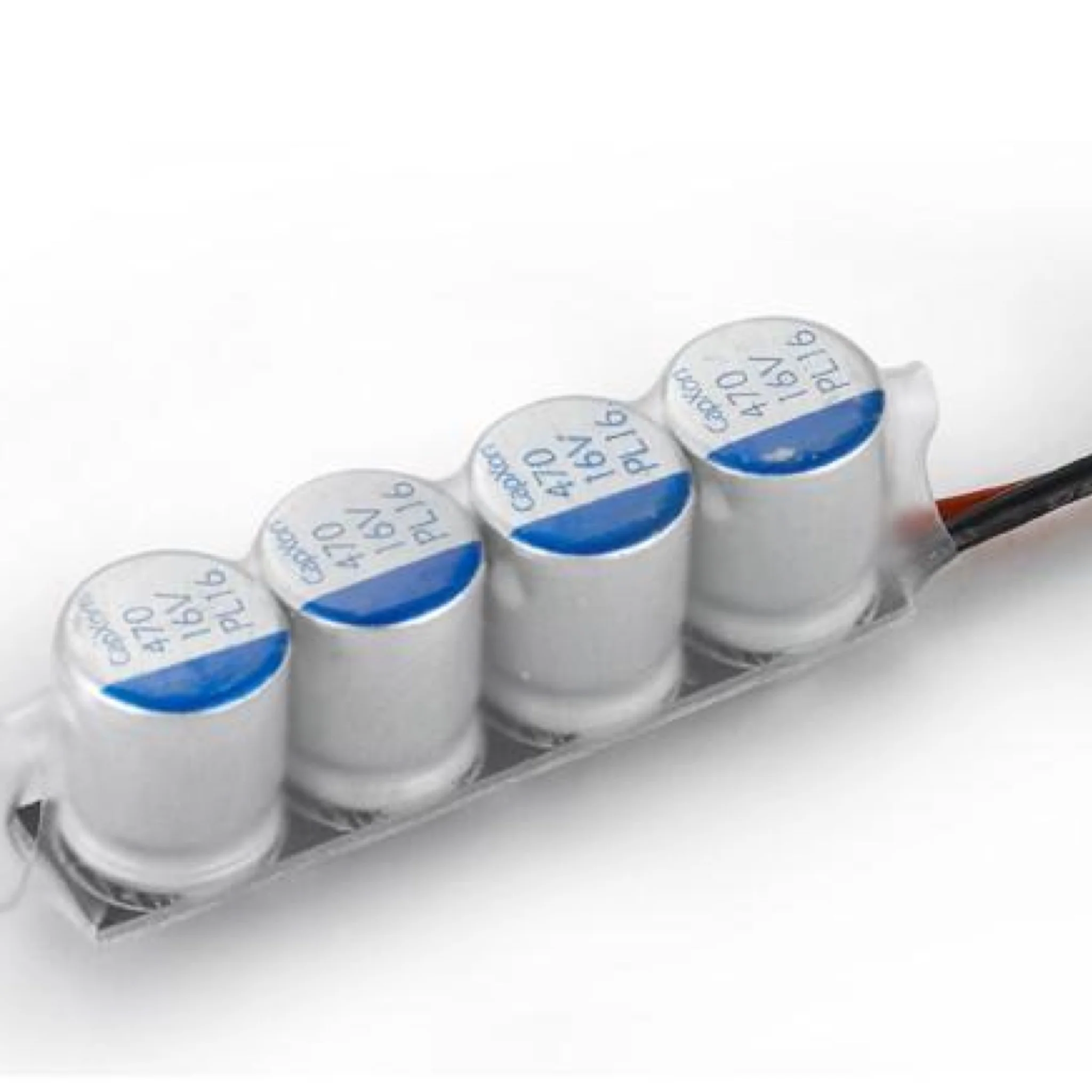

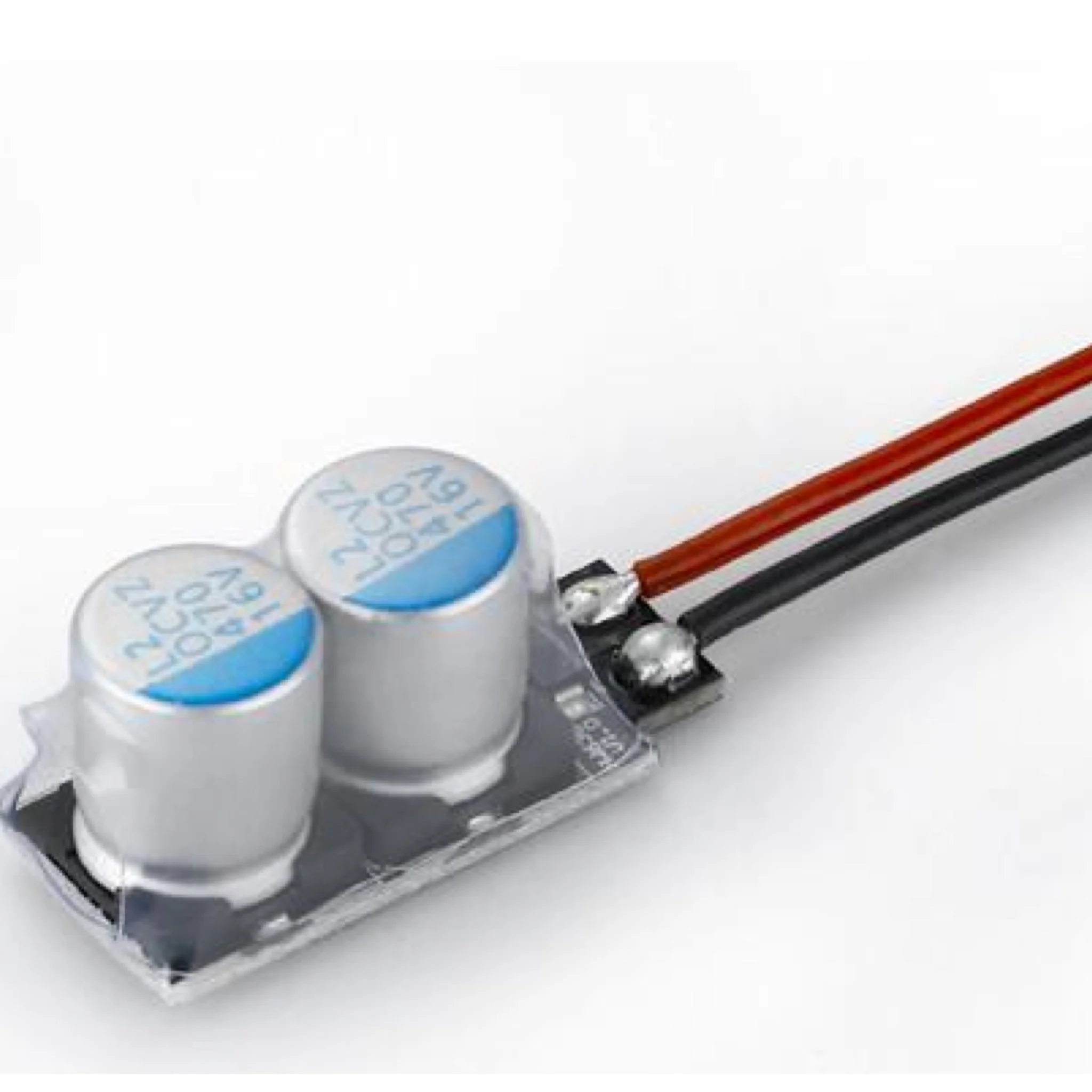

Low-impedance Capacitor Module

P/N	Description	Scale	Application	Specification
30840007	MODULE-F	Standard 1/10th	Stock Spec Justock QR 10BL60 SD	(470u/20V *1PC)
86030030	MODULE-D	Standard 1/10th	XERUN XR10,QUICRUN 10BL60 SENSORED G2	(560u/20V *2PCS)
86030000	MODULE-A	Upgrade 1/10th	XERUN XR10 PRO,XERUN XR10 STOCK SPEC,XERUN-120A-V3.1/V2.1 , XSTOCK ,QUICRUN-10BL60-SENSORED etc.	(470u/20V *4PC)
30840000	MODULE-E	Standard 1/8th	XERUN XR8 Plus G2S、 EZRUN MAX8 G2S、 EZRUN MAX10 G2、QUICRUN WP 8BL150 G2、QUICRUN WP 10BL120 G2、XERUN XR8 PRO G3	(470u/35V*4PCS)
30840008	MODULE-B	Standard 1/10th	XERUN XR10 Stock Spec G2	(1000uF/16V*3PCS)
30840009	MODULE-C	Standard 1/10th	XERUN XD10,XERUN XR10 PRO	(560uF/20V*3PCS)
30840011	MODULE-C Upgrade	Upgrade 1/10th	XERUN XD10,XERUN XR10 PRO	(1000uF/16V*3PCS)
30840010	MODULE-D Upgrade	Upgrade 1/10th	XERUN XR10 PRO	(1000uF/16V*2PCS)

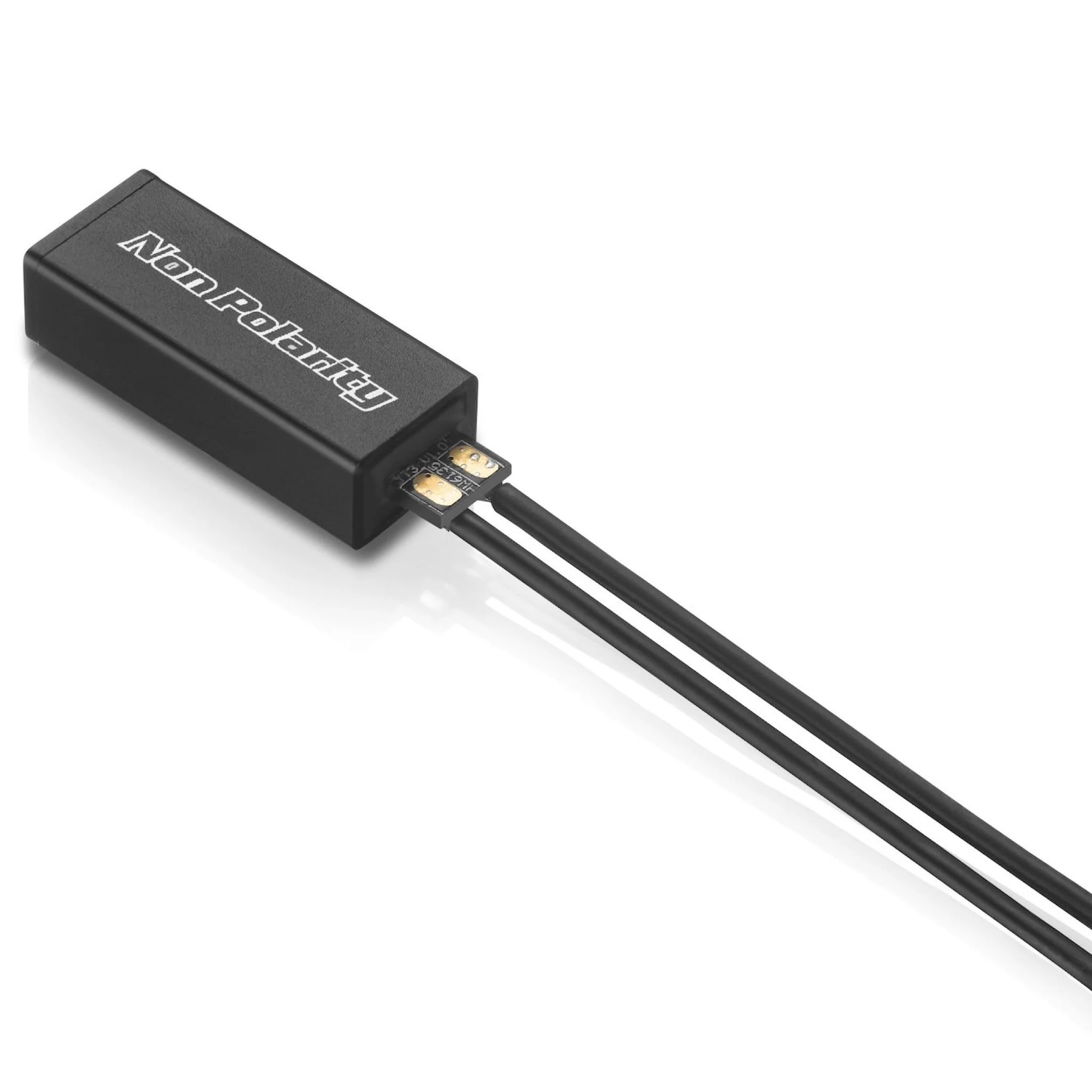

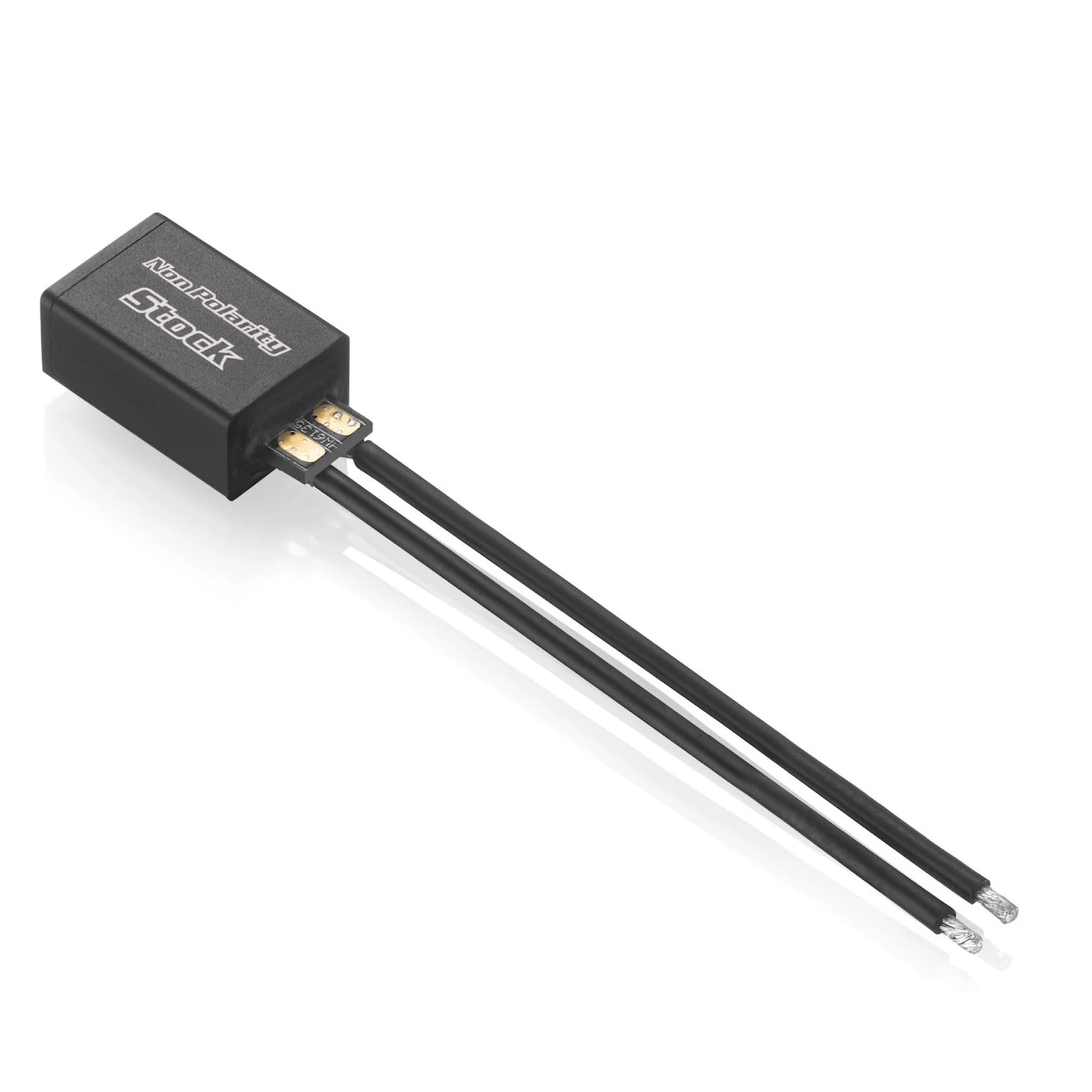

NPC: Non-Polarity Capacitors


PN	30840005	30840004
	MODULE-X	MODULE-XS
	NPC for XR10 PRO G2 ESC Modified & Stock Racing	NPC for XR10 PRO G2 ESC Stock Racing
	1700uF	970uF
	Modified 1/10th	Stock 1/10th
	16V	16V
	2S	2S

Capacitors

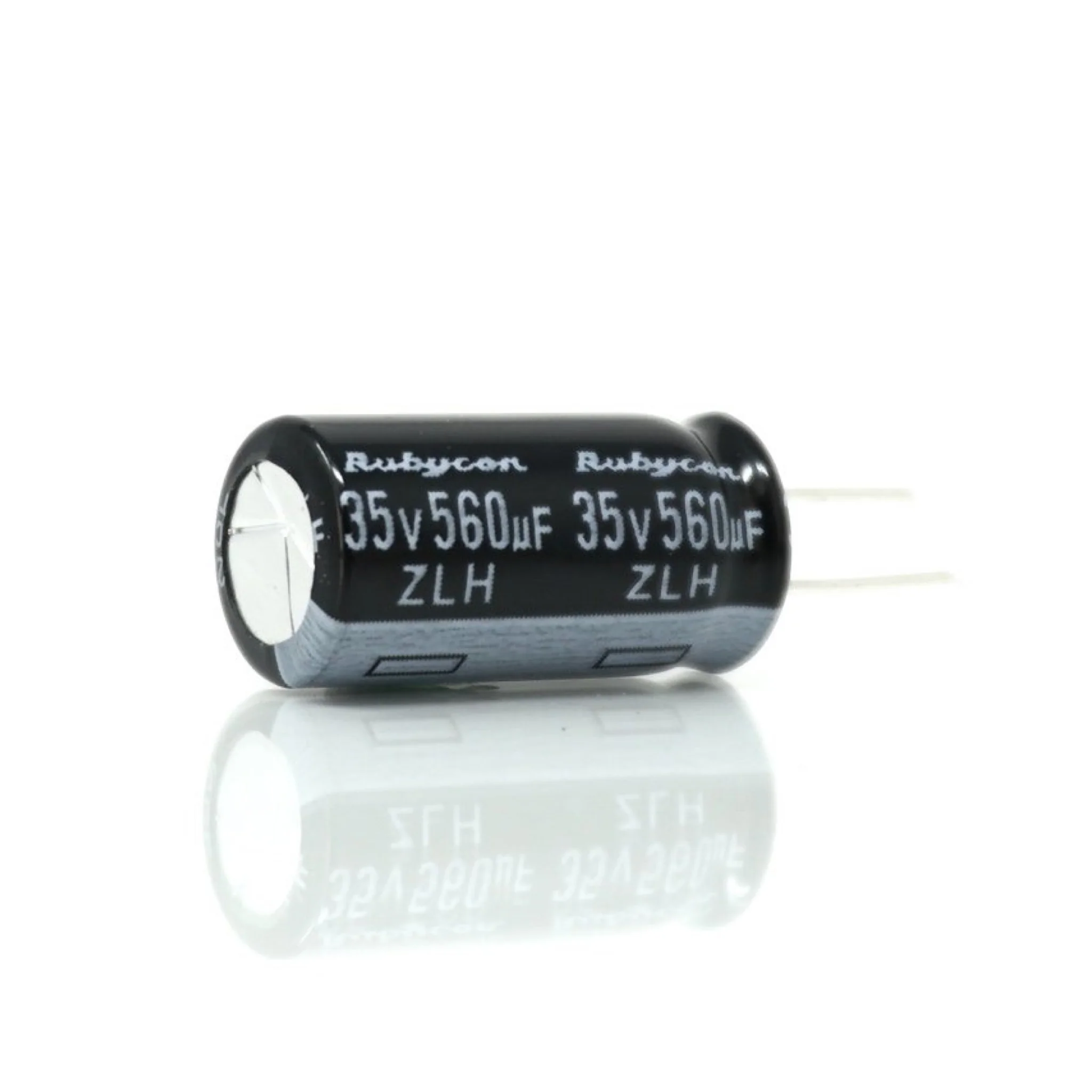

FPV Capacitor
